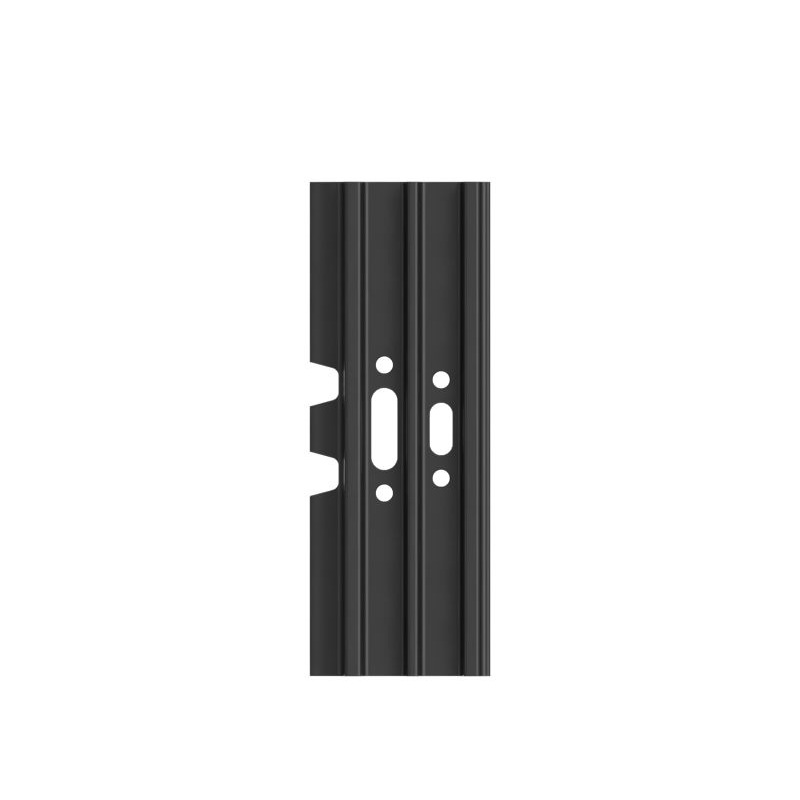

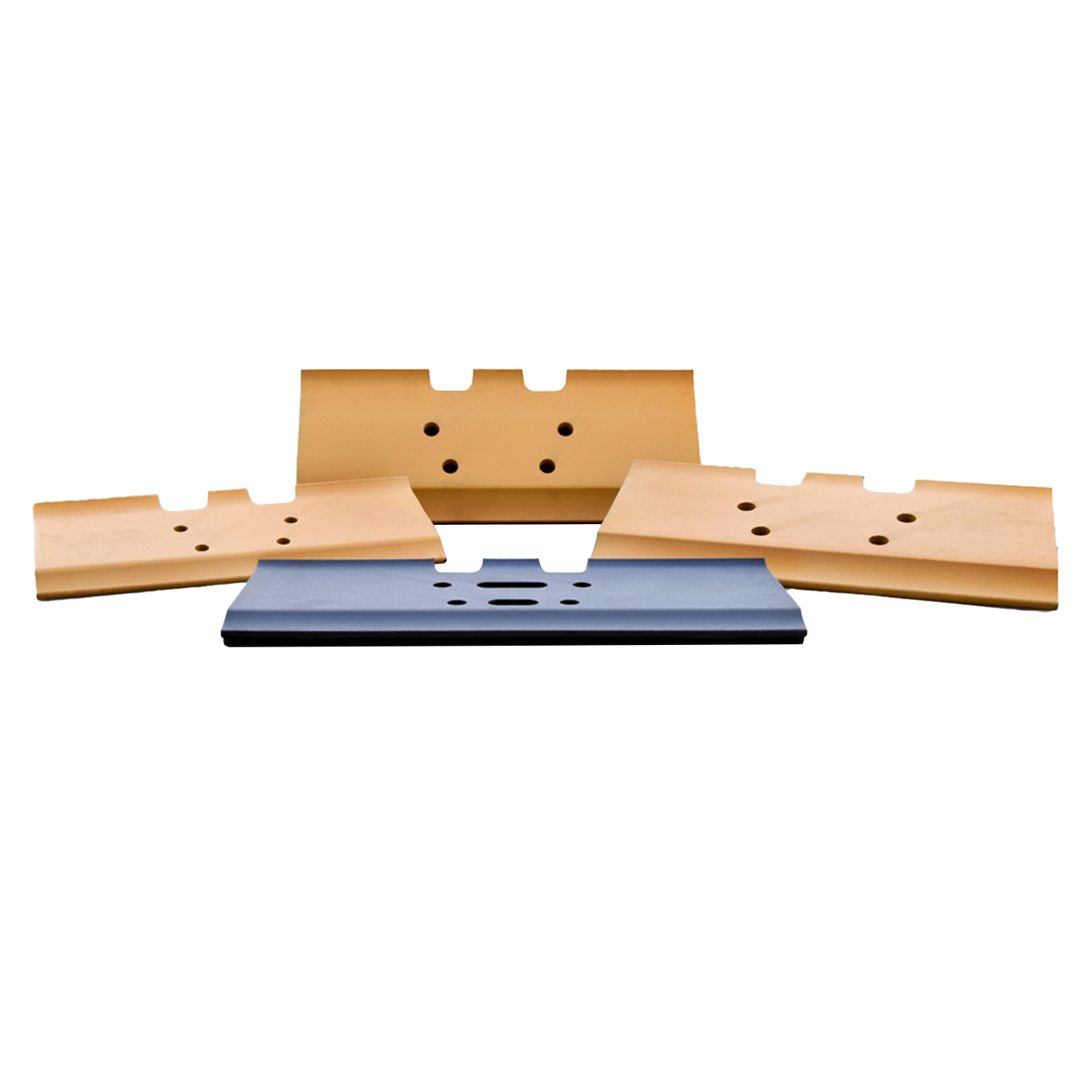

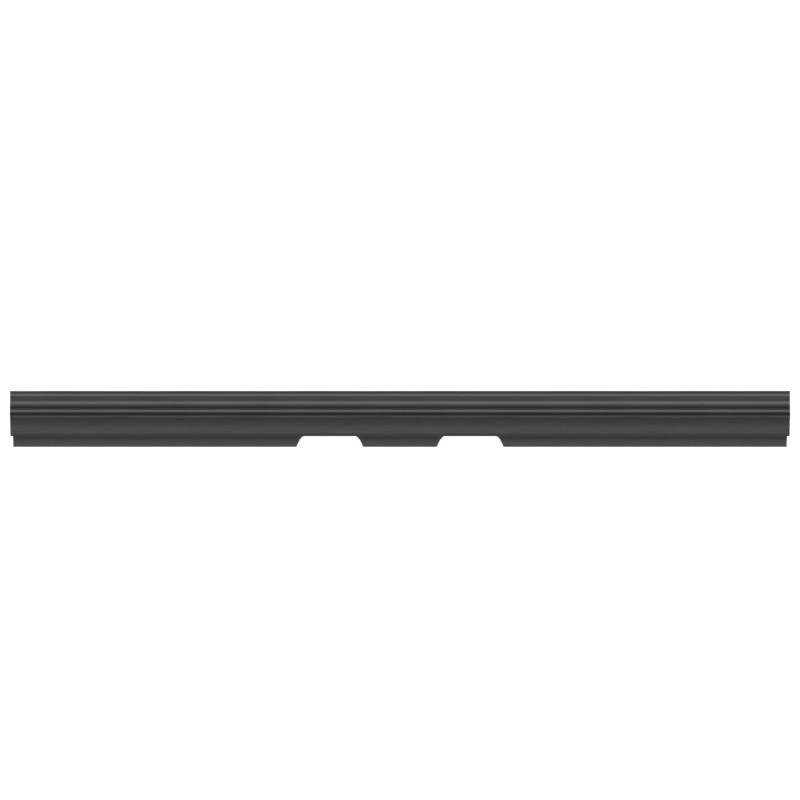

Track shoes feature a simple yet robust design, with two main types (steel and rubber) sharing core structural elements and unique adaptations:
1. Base plate: The flat main body that attaches to the track shoe seat on track links via bolts or locking pins, providing the primary load-bearing surface;
2. Ground-contact surface: The lower side with specialized patterns (grousers, cleats, or a smooth finish) to enhance traction and prevent slippage;
3. Mounting holes: Precision-drilled holes aligned with track link seats for secure installation, with reinforced edges to resist wear and deformation;
4. Reinforcing ribs: Protruding metal ribs on the inner side of steel track shoes to boost structural rigidity; rubber track shoes integrate a vulcanized rubber layer bonded to a steel base, with internal steel cords for tensile strength.
Track shoes are critical undercarriage parts that boost excavator stability, traction and durability.

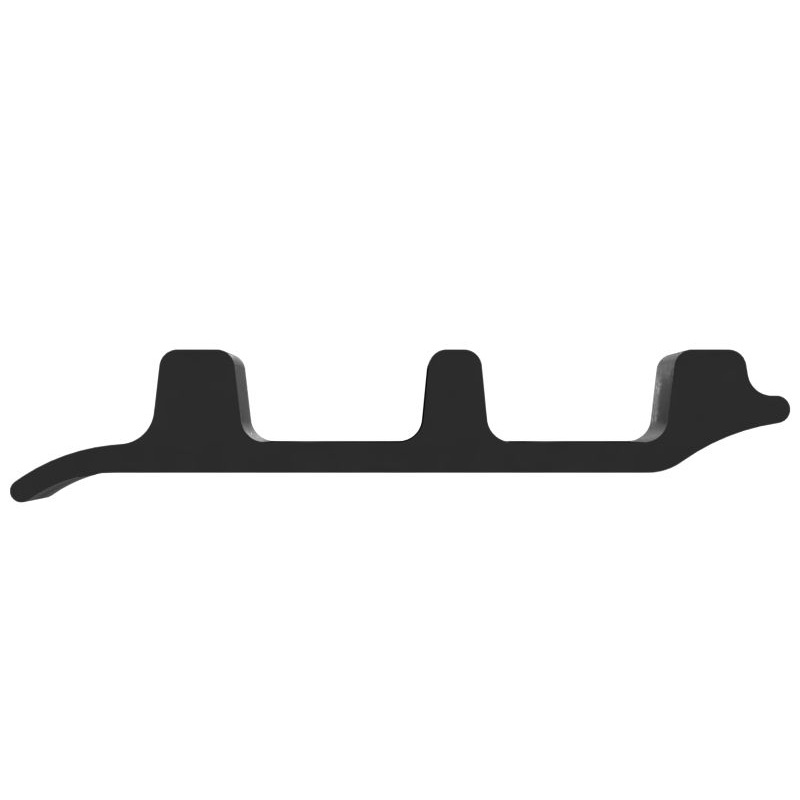

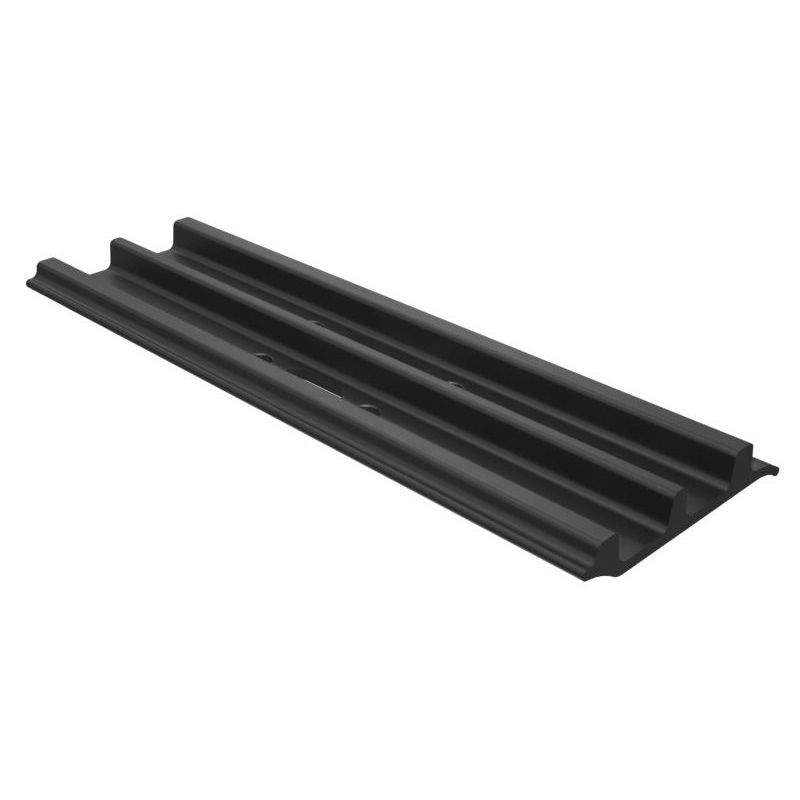

Triple Grouser Track Shoes
· Excellent grip and anti slipping performance
· Ideal for soft soil, mud and uneven terrain
· High flotation reduces ground pressure
Double Grouser Track Shoes
· Balanced traction and wear resistance
· Suitable for mixed working conditions
· Stable and easy to maneuver
Single Grouser / Flat Track Shoes
· Low vibration and smooth travel
· Perfect for hard, rocky or paved ground
· Minimal surface damage and long service life
Track shoes improve load capacity, extend undercarriage life and adapt to diverse job sites efficiently.
Proper maintenance extends track shoe life and improves performance.
1. Daily Inspection
Check for loose bolts, broken grousers, cracks, or severe wear.
Remove mud, stones, and debris trapped between shoes to avoid abnormal wear.
2. Cleaning & Lubrication
Clean track shoes thoroughly after working in mud, sand, or corrosive environments.
Lubricate related components to reduce friction and prevent rust.
3. Tension Adjustment
Maintain proper track tension to avoid excessive wear or derailment.
Too loose causes slipping; too tight increases fuel consumption and part damage.
4. Wear Replacement
Replace track shoes when grouser height is worn down excessively.
Replace worn or damaged parts promptly to protect the entire undercarriage.
5. Operating Habits
Avoid sharp turns or prolonged operation on hard rocky ground.
Operate smoothly to reduce impact and extend service life.
As the "feet" of track-type construction machinery, track shoes are the unsung foundation of reliable on-site operation, enduring constant ground friction, impact, and load-bearing in every task. Their tailored material selection and terrain-specific design balance traction, stability, and ground protection, while their detachable structure offers unmatched operational flexibility. Proper inspection and maintenance of track shoes not only extend their own service life but also reduce wear on track links, rollers, and other undercarriage components, minimizing costly downtime and operational expenses. For equipment operators and maintenance teams, selecting the right track shoes for the working terrain and adhering to regular care protocols is essential to maximizing the machine’s performance, safety, and overall service life in harsh construction environments.
