1.Multi-Stage Filtration Media:
High-quality filters utilize a pleated, resin-impregnated cellulose or synthetic composite media designed for high particle capture efficiency. Many include a synthetic scrim or mesh backing for added strength.
2.Anti-Drain Back Valve:
An internal silicone or rubber valve prevents oil from draining out of the filter and the engine's oil galleries when the engine is off. This ensures immediate oil pressure and lubrication upon startup, preventing critical dry-start wear.
3.Bypass/Relief Valve:
A built-in spring-loaded valve protects the engine in case the filter becomes clogged or the oil is too viscous during cold starts. It allows unfiltered oil to bypass the clogged media temporarily, ensuring continuous oil flow to the engine, albeit without filtration.
4.Robust Construction:
Features heavy-duty steel or composite can/casing (for spin-on types) or a reinforced center tube and end caps (for cartridge elements) to withstand system pressure, vibration, and thermal cycles. A high-quality sealing gasket ensures a leak-proof connection.
5.High Dirt-Holding Capacity:
The pleated design and advanced media are engineered to retain a significant amount of contaminant without excessive flow restriction, extending service life.
1.Core Engine Protection:
Acts as the primary defense against internal abrasive wear, directly contributing to extended engine life and preventing major mechanical failures.
2.Maintained Oil Performance:
Clean oil retains its lubricating, cooling, and cleaning properties for longer, ensuring optimal performance of oil additives.
3.Improved Reliability & Uptime:
Reduces the risk of unexpected, costly engine breakdowns, which is crucial for maintaining project schedules and productivity on construction sites.
4.Enhanced Engine Efficiency:
Reduced internal friction from clean oil can contribute to maintained fuel efficiency and consistent engine power output.
5.Reduced Operating Costs:
Extends oil change intervals (when aligned with manufacturer specs and oil analysis) and prevents vastly more expensive engine overhauls or replacements.
1.Strict Adherence to Replacement Intervals:
Always replace the oil filter every time the engine oil is changed.
Never reuse an old filter. Follow the OEM-recommended service intervals based on operating hours, which are often more frequent for construction equipment due to severe-duty cycles.
2.Use Heavy-Duty, High-Quality Filters:
Construction equipment operates under severe stress. Always use filters specifically rated for heavy-duty/service applications that meet or exceed the OEM specifications for efficiency, capacity, and valve performance.
Never use an automotive-grade filter as a substitute.

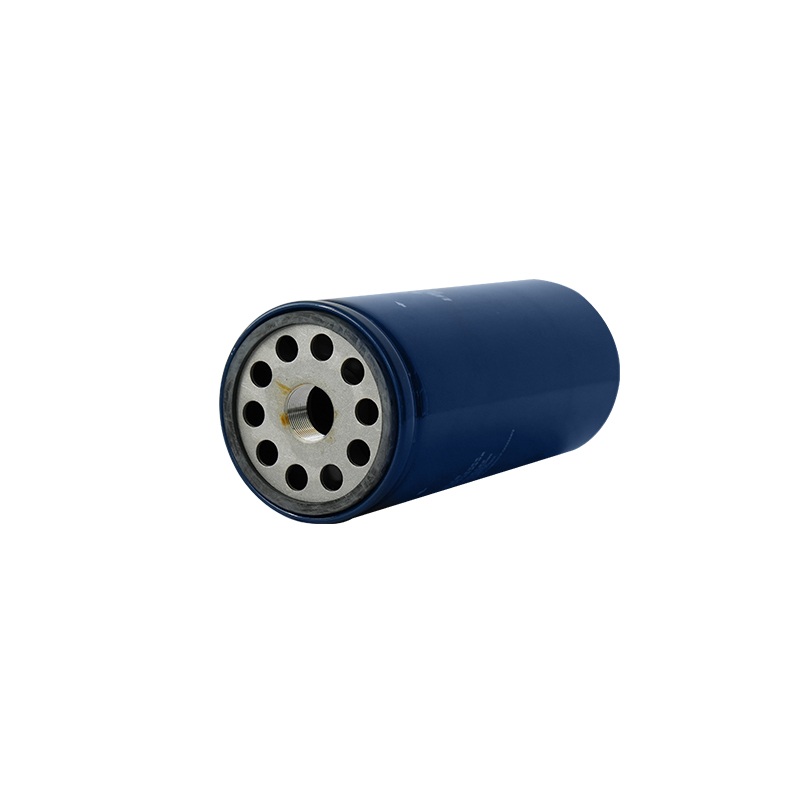

3.Proper Installation (for Spin-On Filters):
* Ensure the sealing surface on the engine block is clean.
* Lightly lubricate the new filter's gasket with clean engine oil.
* Hand-tighten only. Follow the manufacturer's instructions (typically 3/4 to 1 full turn after the gasket contacts the sealing surface). Over-tightening can damage the gasket or housing; under-tightening can cause leaks.

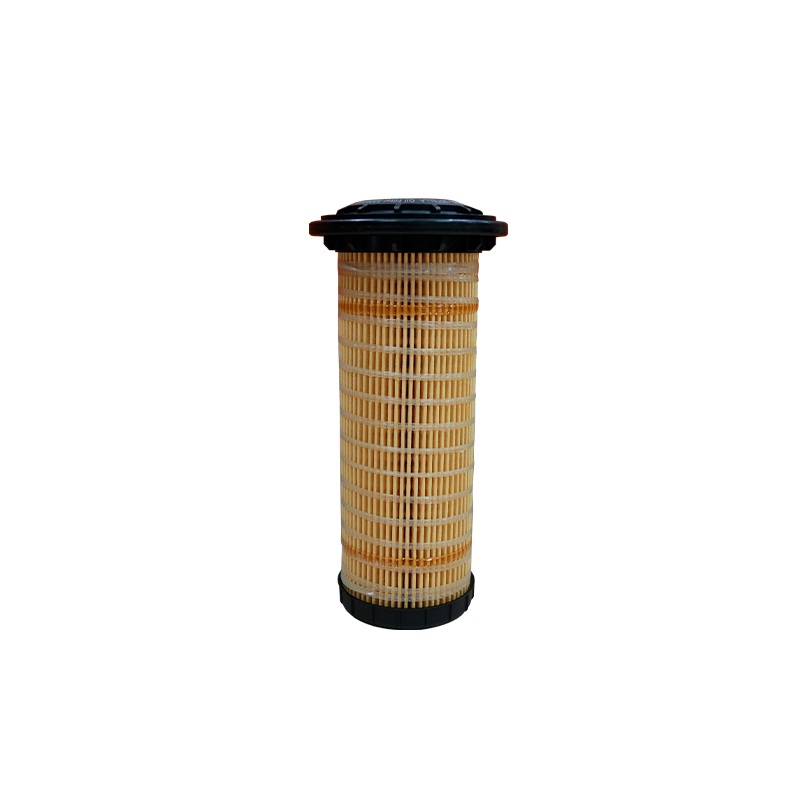

4.Proper Installation (for Cartridge Elements):
* Thoroughly clean the filter housing and cap.
* Ensure the old gasket is removed from the housing groove.
* Lubricate and correctly seat the new element and all new gaskets/O-rings provided in the kit.
* Tighten the housing cap to the specified torque.
5.Monitor for Warning Signs:
Be alert to symptoms that may indicate a filter or lubrication issue:
* Low oil pressure warning light.
* Visible oil leaks around the filter seal.
* Metal debris on the used filter's media or in the old oil.
6.Incorporate Oil Analysis:
For fleet management or critical machines, implement used oil analysis. This can determine the optimal oil and filter change interval based on actual engine condition and contaminant levels, maximizing value and providing early failure warnings.
The engine oil filter cartridge is a relatively low-cost but vital insurance policy for the most expensive component of construction equipment—the engine. In the harsh, high-load, and dusty environments where these machines operate, diligent filter maintenance using high-quality, application-specific products is non-negotiable. Consistent and correct oil filter service is a fundamental pillar of preventive maintenance, safeguarding engine investment, ensuring maximum machine availability, and controlling long-term operating costs.
