Key Features
A standard steel track link features a rugged, symmetrical design with four integral parts, and rubber track links add a wear-resistant rubber pad layer:

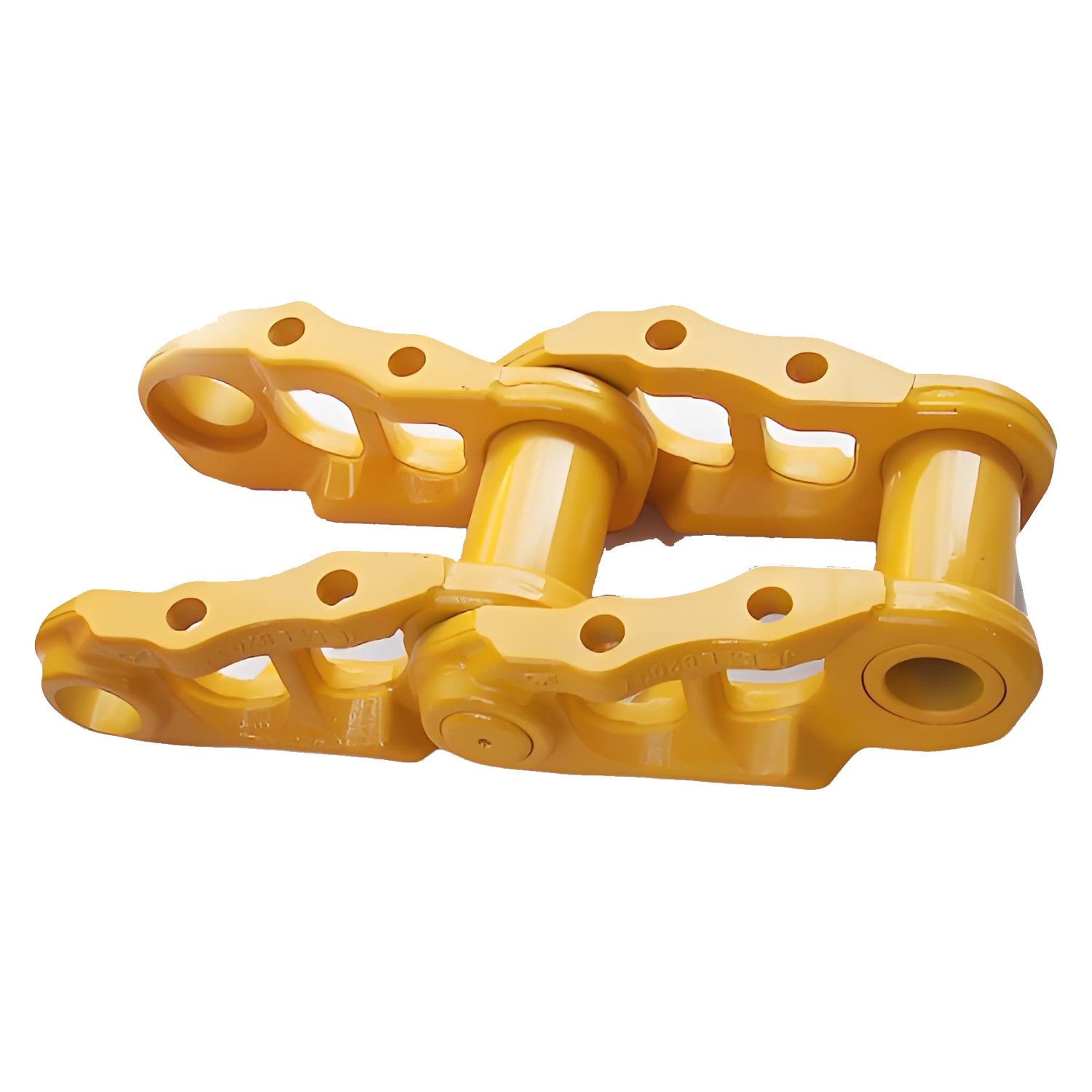

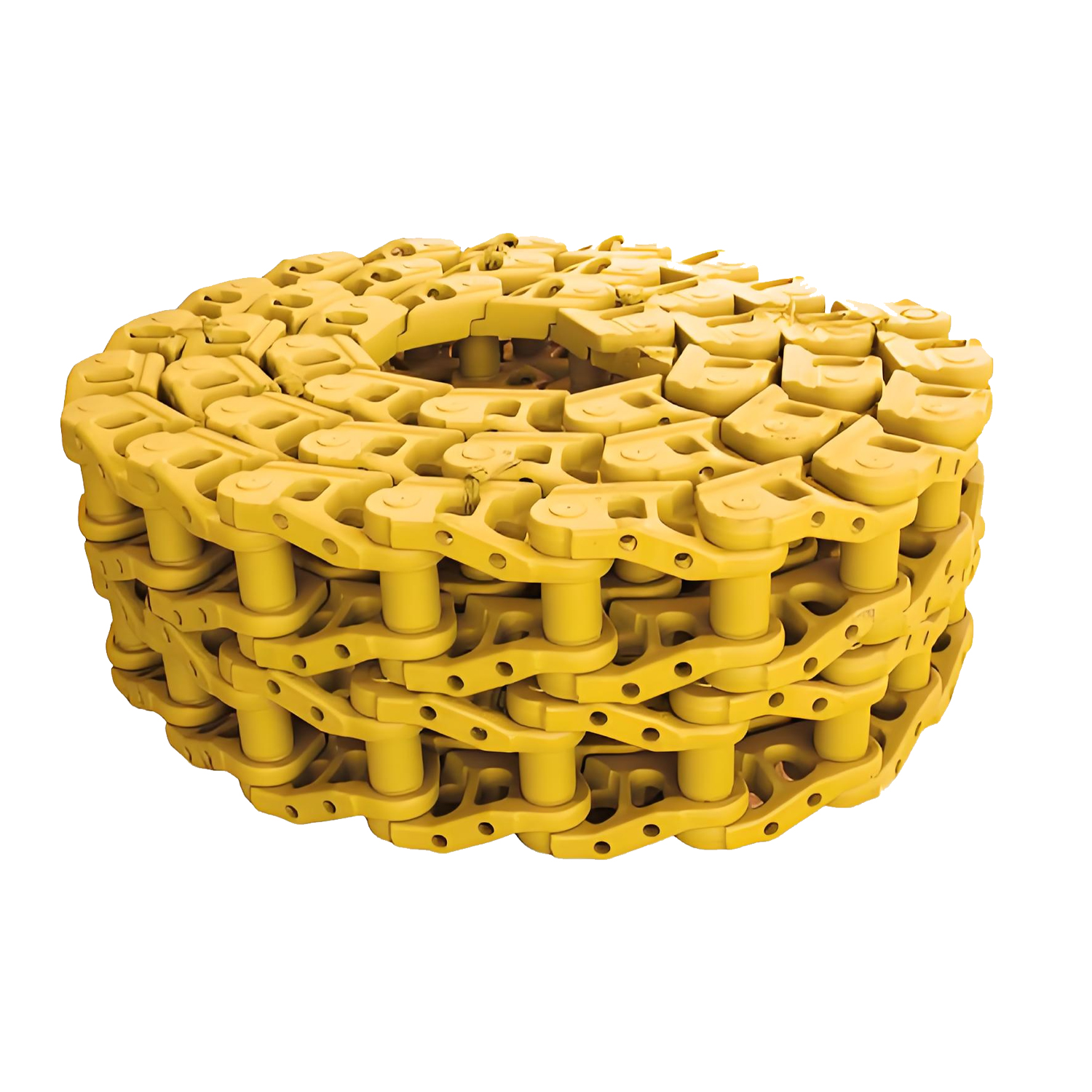

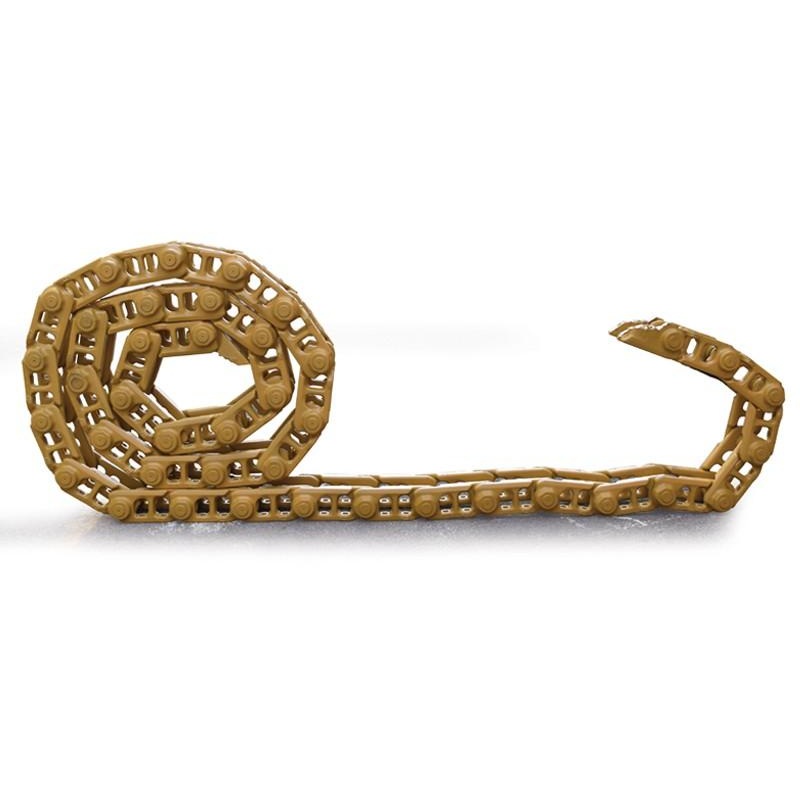

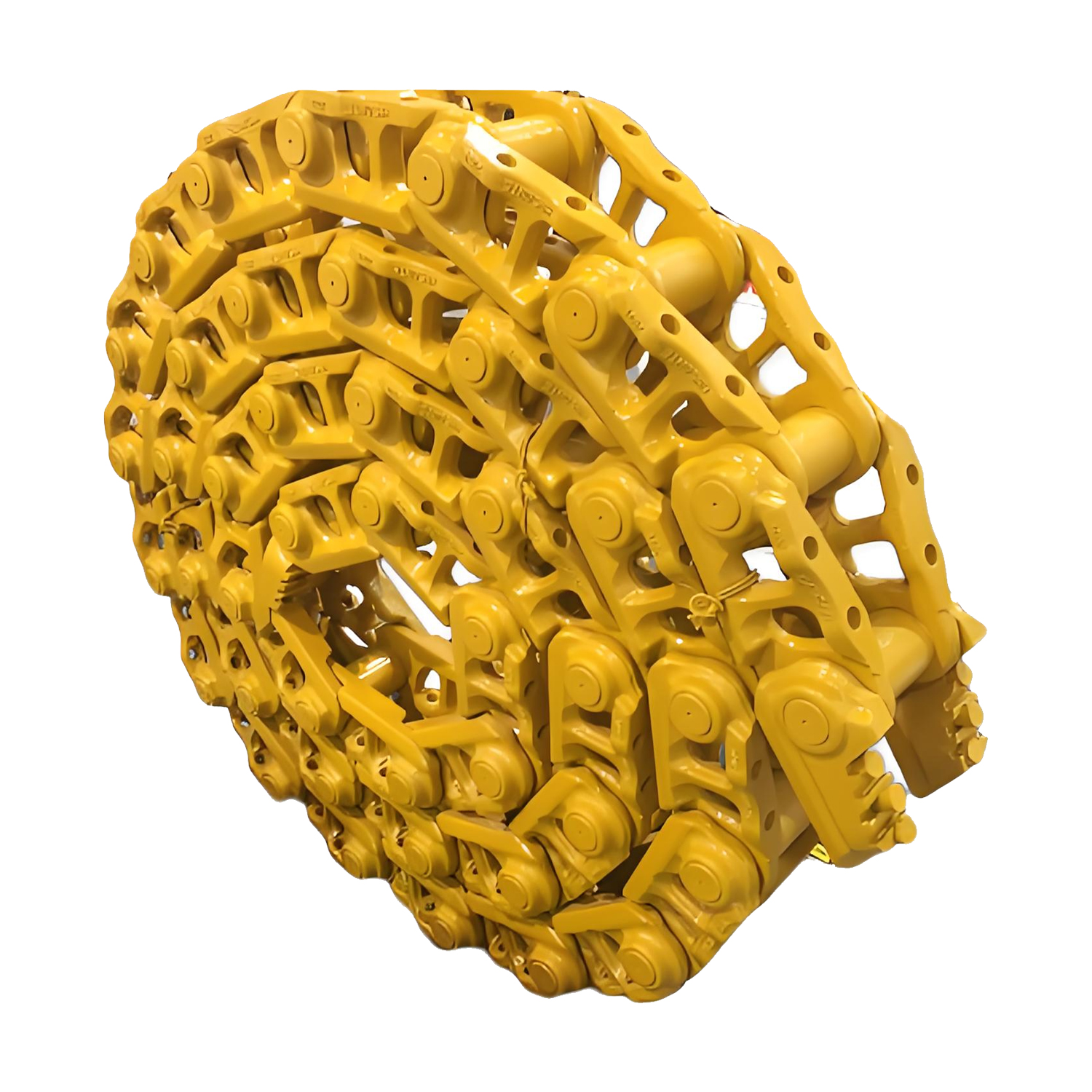

1. Link plate: The thick, flat steel main body with precision-machined pin and bushing holes at both ends, providing the core structural strength for interlocking;
2. Pin and bushing assembly: Hardened steel pins insert into the bushing holes of adjacent links, enabling flexible articulation for the track chain to adapt to curved undercarriage paths and uneven ground;
3. Track shoe seat: A protruding welded structure on the outer side of the link plate (for steel tracks), fixing track shoes to increase ground contact area and traction;
4. Bore surface: Precision-machined and hardened inner surface of the pin/bushing holes, reducing friction during link articulation. Rubber track links integrate a vulcanized rubber pad on the outer side for low-noise, low-damage operation on hard surfaces.
Benefits
1. Increased Durability: Built to withstand harsh working conditions, minimizing downtime and maintenance costs.
2. Enhanced Machine Performance: Ensures smooth and efficient movement, improving overall productivity.
3. Compatibility: Designed to fit a range of Caterpillar machines, making it a versatile choice for various applications.
4. Easy Installation: The precise specifications allow for straightforward installation, reducing setup time.
Maintenance Tips
1. Wear inspection: Regularly check for link plate deformation, pin/bushing wear (excessive play between links) and bore hole abrasion; replace worn link assemblies when play exceeds manufacturer specifications;
2. Lubrication: For sealed track links, check the lubricant seal integrity—oil leakage causes rapid pin/bushing wear; for open track links, apply high-pressure grease to pin/bushing assemblies every 200-300 operating hours;
3. Tightness check: Ensure no loose or broken links in the track chain; repair or replace damaged links promptly to avoid track chain failure;
4. Debris cleaning: Remove soil, gravel and metal debris stuck between links in time to reduce additional friction and abrasion during articulation;
5. Operational precautions: Avoid high-speed operation on sharp rocky terrain, harsh sudden turns and overloading, which cause premature link deformation, wear and breakage.
Conclusion
As the interconnected backbone of the track undercarriage, track links are the unsung workhorse of track-type construction machinery, enduring constant force transmission, wear and ground impact in every operation. Their robust forging, precision machining and specialized heat treatment ensure the track chain’s structural integrity and flexibility, while standardized maintenance extends their service life. A well-maintained track link assembly not only guarantees the smooth, stable operation of the track system but also reduces premature wear of sprockets, rollers and other undercarriage components, minimizing equipment downtime and operational costs. For construction machinery operators and maintenance teams, prioritizing track link inspection and care is essential to maximizing the machine’s service life and operational efficiency in harsh working conditions.
