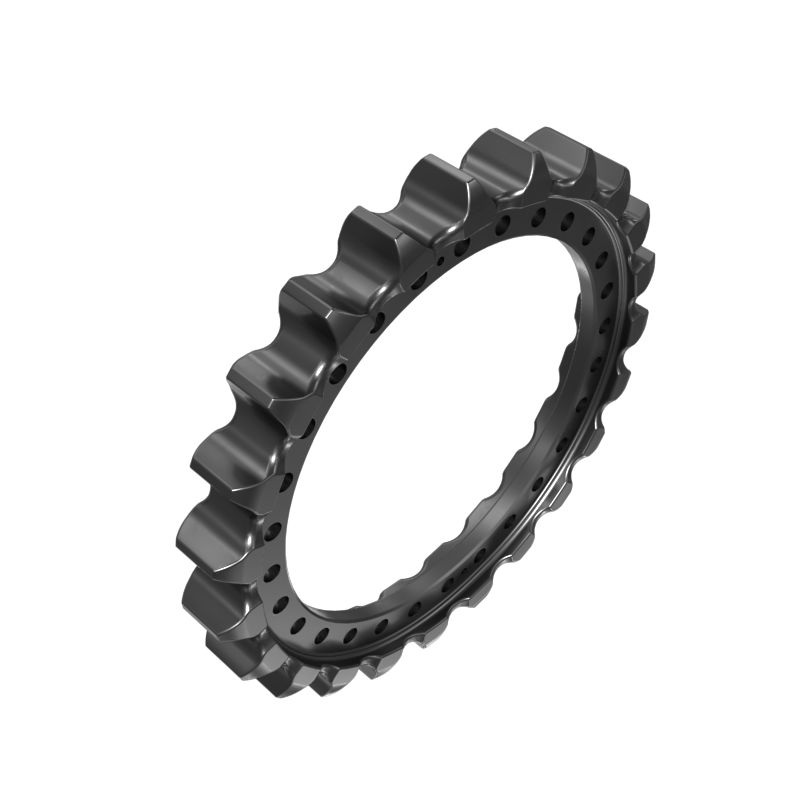

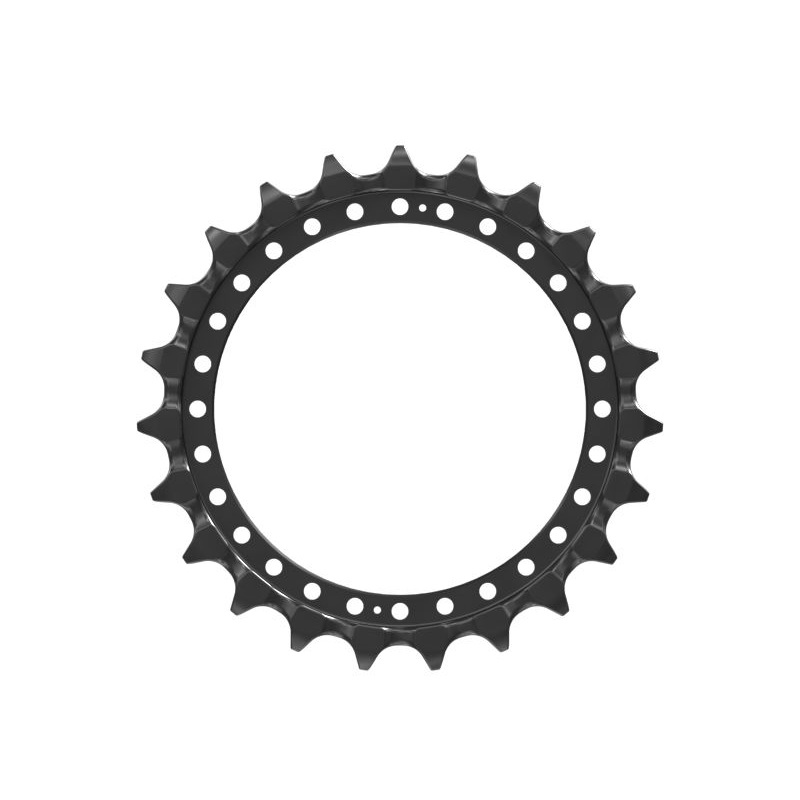

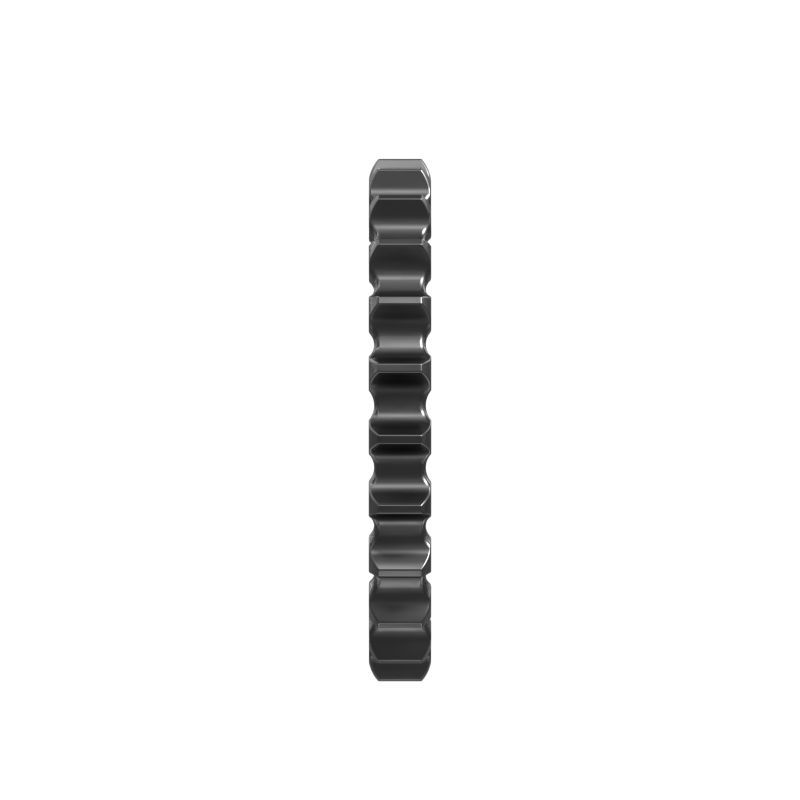

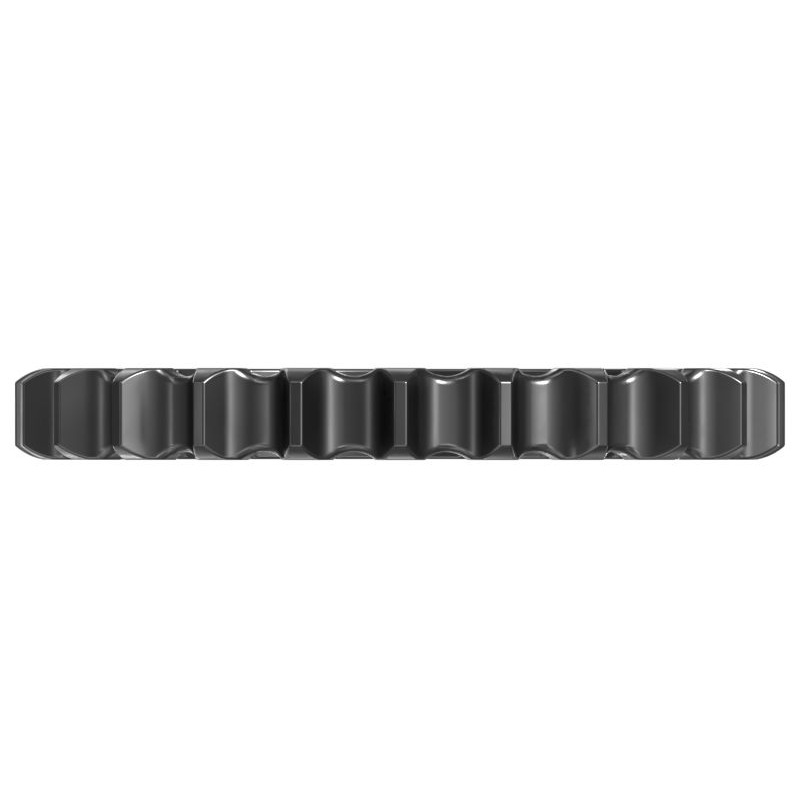

A standard drive sprocket features a precision-engineered structure with three key components:
1. Toothed rim: The outer circular part with evenly spaced, specially profiled teeth that mesh perfectly with the track chain’s pin and bushing assemblies, ensuring no slip during power transmission;
2. Hub: The central cylindrical part connected to the final drive shaft, with keyways or bolt holes for firm torque transmission and coaxial rotation with the shaft;
3. Reinforced web: The connecting structure between the toothed rim and hub, designed with ribbed or solid construction to enhance structural rigidity and bear heavy torque and impact forces. Heavy-duty sprockets often adopt an integrated forging design for the rim and hub to avoid structural separation under extreme loads.
Functions
1. Power conversion & transmission: Transmit the high torque from the final drive to the track chain via meshing teeth, converting rotational motion into the linear movement of the track to drive the machine forward, backward and turn;
2. Traction provision: Generate the necessary ground traction for the machine to overcome resistance when climbing slopes, operating on soft soil or carrying heavy loads, a core function for heavy-duty operation;
3. Synchronized operation: Ensure the left and right track sprockets rotate in a coordinated manner, enabling precise steering and stable straight-line movement of the machinery;
4. Load bearing: Withstand the combined forces of torque, impact and radial load during meshing with the track chain, maintaining structural integrity under harsh working conditions.
1. Main body: Forged from high-strength alloy steels offering superior toughness, fatigue resistance and impact strength to endure high torque and frequent meshing impact;
2. Tooth surface treatment: Undergo carburizing and quenching, or induction hardening combined with low-temperature tempering, achieving a surface hardness of HRC 58-65 and a tough core (HRC 28-35), balancing extreme wear resistance and anti-chipping performance;
3. Hub & web: Quenched and tempered to HRC 25-32, ensuring high structural strength and torque transmission capacity without brittle fracture. Some sprockets apply anti-corrosion paint on non-contact surfaces to extend service life in humid or corrosive environments.
1. Wear inspection: Regularly check for tooth wear (e.g., tooth tip rounding, tooth surface pitting, uneven wear), and replace the sprocket when tooth wear exceeds 15% of the original size to avoid poor meshing with the track chain;
2. Meshing check: Ensure the sprocket teeth mesh perfectly with the track chain—misalignment will cause accelerated wear of both components and even track derailment;
3. Fastener check: Tighten the bolts or keys connecting the sprocket to the final drive shaft regularly to prevent loosening and coaxiality deviation during high-speed rotation;
4. Operational precautions: Avoid sudden acceleration/deceleration, harsh turns or meshing with a loose track chain, which will cause excessive impact and slip wear on the sprocket teeth; remove debris stuck between teeth in time to prevent abnormal meshing.
As the "power heart" of the track undercarriage, sprockets are irreplaceable for the normal operation of track-type construction machinery, despite enduring constant high-torque transmission and meshing wear. Their precision design, high-performance material selection and specialized heat treatment ensure reliable power transfer in the harshest working environments. Proper inspection and maintenance of sprockets not only extend their own service life but also prevent premature wear of the track chain and other undercarriage components, reducing equipment downtime and operational costs.
