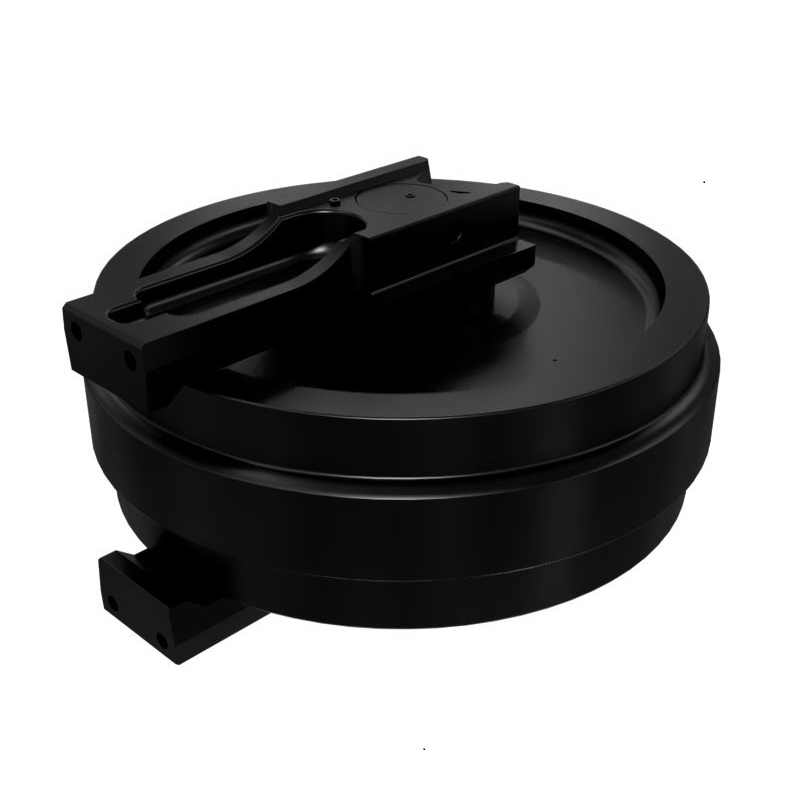

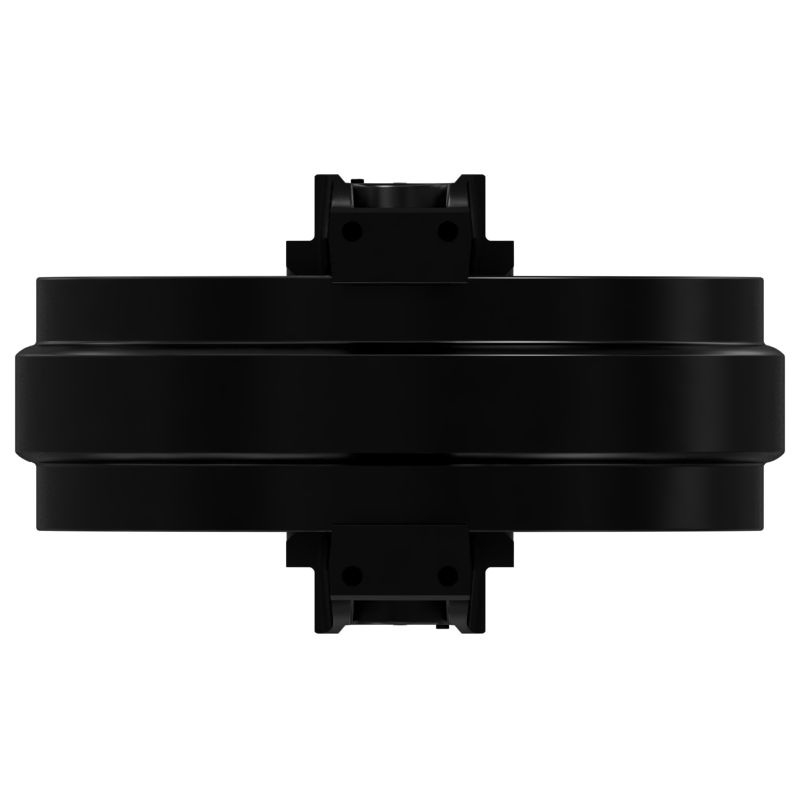

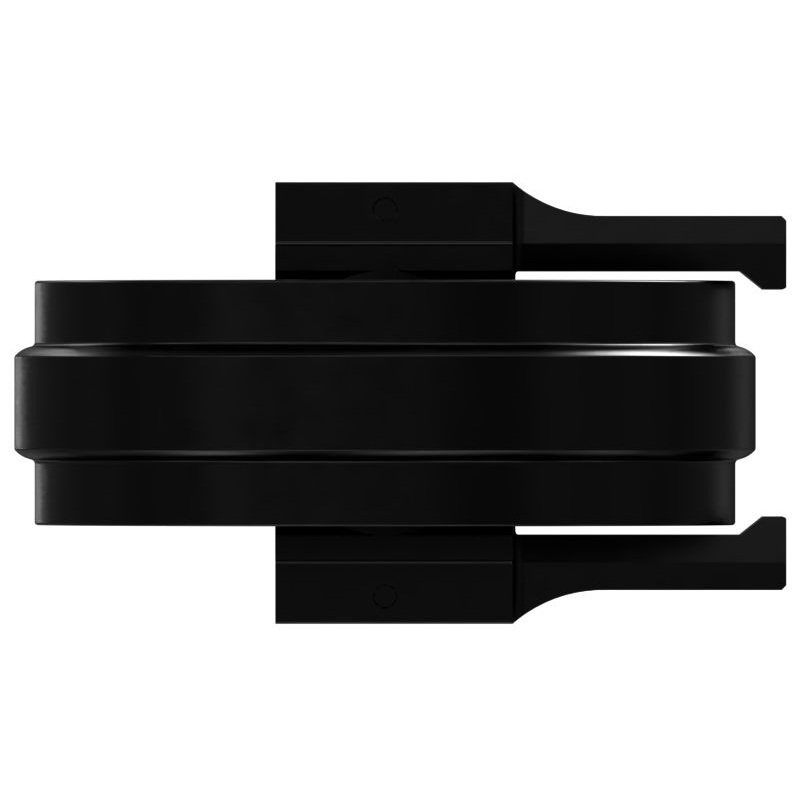

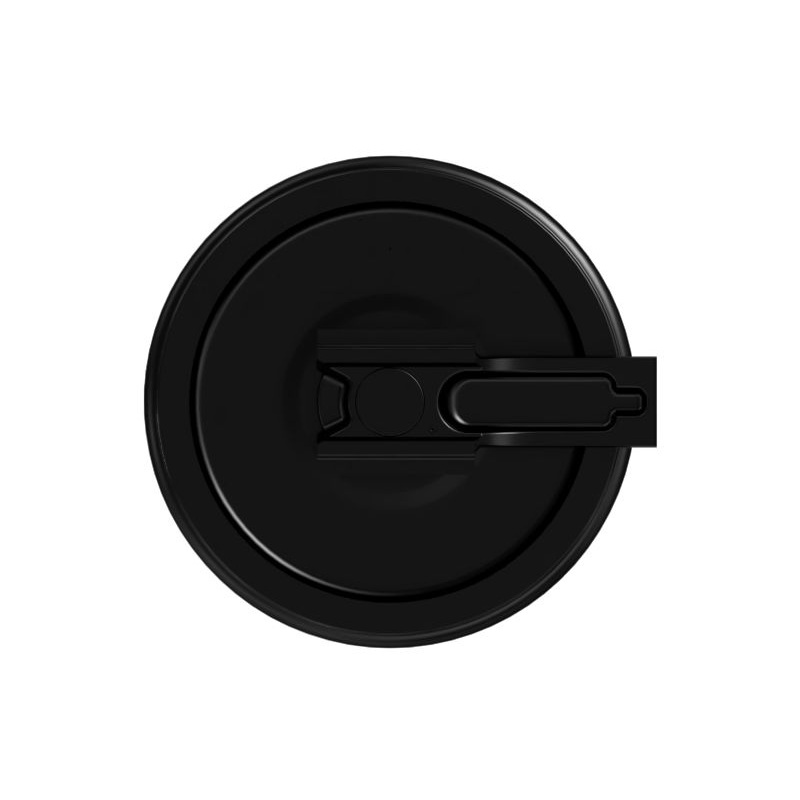

Idlers

Undercarriage parts and components work as a system to move the machine in any type of terrain. You Star produces high quality undercarriage parts to keep your heavy machinery running productively without delays. Undercarriage parts can account for a large amount of the repair investment you make over the life of the machine. For this reason, You Star offers the highest quality undercarriage replacement parts, while giving customers the ability to obtain significant savings to reduce repairs cost on their machine.

Idlers, also called guide wheels, are fundamental components of the undercarriage system in track-type construction machinery (e.g., excavators, bulldozers, crawler loaders). Positioned at the front or rear end of the track frame, they serve as the primary guiding and tensioning element for the track chain. Unlike drive sprockets (power transmission) or carrier rollers (load-bearing), idlers focus on maintaining track alignment, regulating tension, and absorbing impact—critical for stable machine operation in harsh construction environments.


Availability:



Inquire

Idlers

Product Description

Key Features

1. Circular rim (outer contact surface) with flanged edges to prevent lateral track slippage;

2. Central hub connecting the rim to the undercarriage’s tensioning mechanism;

3. Precision roller bearings enclosed within the hub for low-friction rotation;

4. Sealing system (single or double seals) to protect bearings from dirt, water, and debris;

5. Tensioning assembly (hydraulic cylinder or spring) integrated with the hub to adjust track tightness dynamically.

Functions

1. Track guidance: Guides the track chain into proper meshing with drive sprockets and rollers, preventing derailment during turns or uneven terrain navigation;

2. Tension regulation: Works with the tensioning mechanism to maintain optimal track tension—avoiding slack (derailment risk) or over-tightening (excessive friction and wear);

3. Impact absorption: Absorbs shocks from obstacles (rocks, debris) and uneven ground, reducing stress on the track chain and undercarriage frame;

4. Load distribution: Distributes partial machine weight to the track’s front/rear sections, enhancing stability during start-stop operations.

Material Selection & Heat Treatment

1. Rim & hub: Manufactured from high-strength alloy steels for exceptional impact resistance and durability;

2. Surface treatment: Rim contact surfaces undergo quenching and tempering or carburizing to achieve HRC 55-62 hardness, resisting abrasive wear from track links;

3. Bearings: High-carbon chromium bearing steel with high-temperature grease lubrication, ensuring smooth rotation under heavy loads;

4. Seals: Wear-resistant rubber or polyurethane materials to maintain sealing integrity in dusty, wet conditions.

Maintenance Tips

1. Regular tension checks: Verify track tension per manufacturer guidelines (typically 10-30mm sag under specified load) and adjust via the idler’s tensioning assembly;

2. Wear inspection: Check for rim wear (rounding, chipping, or uneven grinding), bearing damage (unusual noise, excessive play, or oil leakage), and seal deterioration;

3. Cleaning & lubrication: Remove debris from the idler’s rim and seals; reapply lubricant to bearings at recommended intervals (usually every 250-500 operating hours);

4. Timely replacement: Replace idlers when rim wear exceeds 10% of original thickness, bearings fail, or seals lose effectiveness—avoiding secondary damage to the track chain or sprockets;

5. Operational care: Avoid high-speed impacts with obstacles and minimize sharp turns to reduce premature idler wear.

Conclusion

Idlers are the "steering and shock absorber" of the track undercarriage, bridging the gap between track guidance, tension control, and impact resistance. With robust structural design, high-performance materials, and proper maintenance, they ensure the track system operates reliably, extending the machinery’s service life and reducing downtime. For equipment operators and maintenance teams, prioritizing idler inspection and care is key to maximizing construction efficiency and minimizing operational costs.
