Bucket teeth are the first point of contact between the massive power of the excavator and the ground. Their primary functions are to:
1.Penetrate and Fracture:
Their sharp, tapered design concentrates the machine's hydraulic force into a small area, allowing them to penetrate hard, compacted materials like soil, clay, rock, and asphalt more efficiently than a flat edge.
2.Reduce Drag and Friction:
By breaking ground individually, teeth significantly reduce the drag and friction that a full-width blade would experience, leading to smoother digging cycles and lower fuel consumption.
3.Protect the Bucket:
They act as sacrificial wear parts, absorbing the abrasive and impact forces that would otherwise wear down the much larger and more expensive bucket shell or cutting edge. Regular tooth replacement protects this major investment.
A tooth assembly typically consists of two parts:

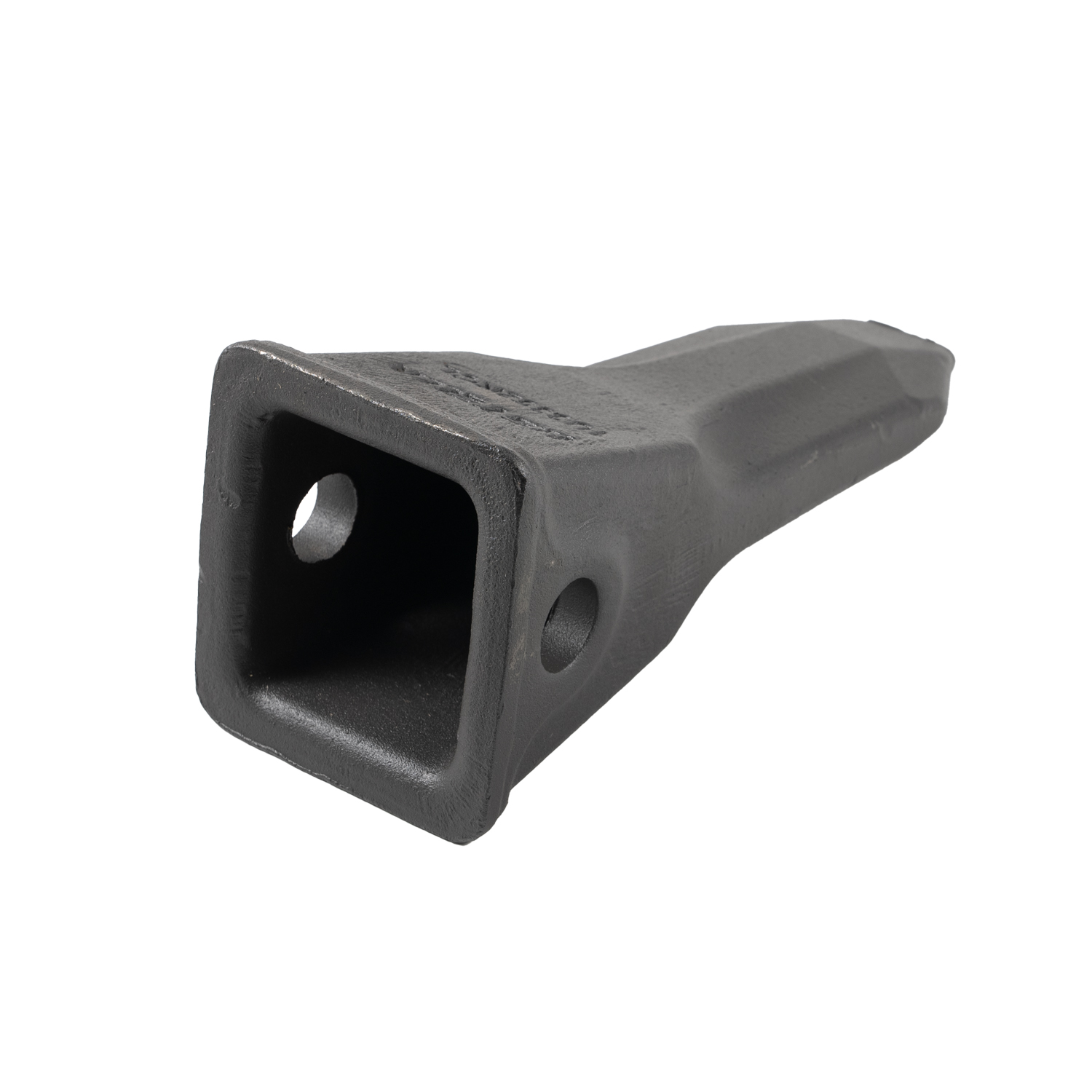

1. The Bucket Adaptor: This is permanently welded or mechanically attached to the bucket's front cutting edge. It provides the sturdy foundation and locking mechanism.

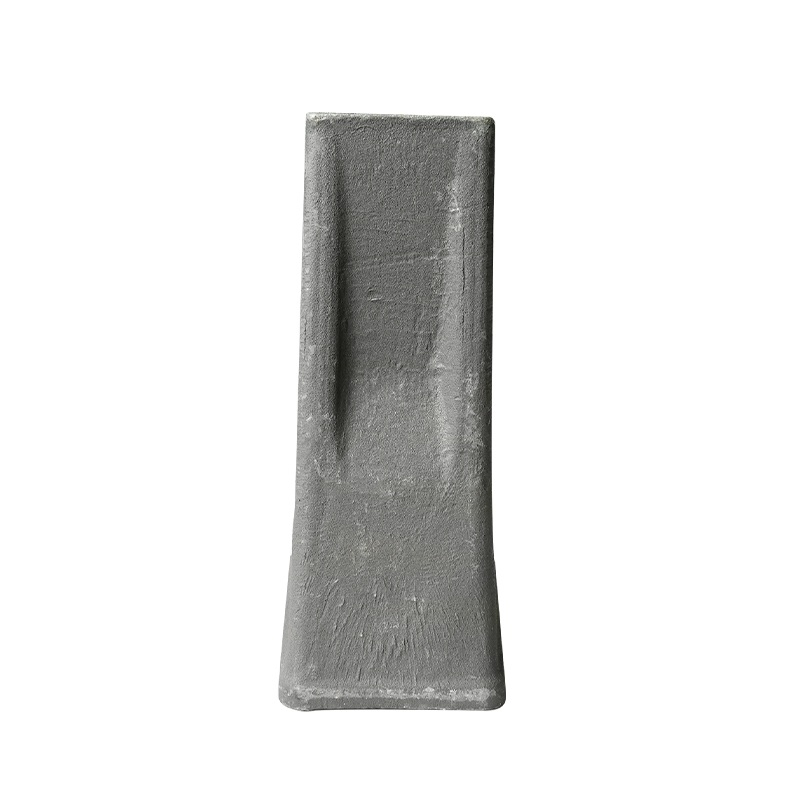

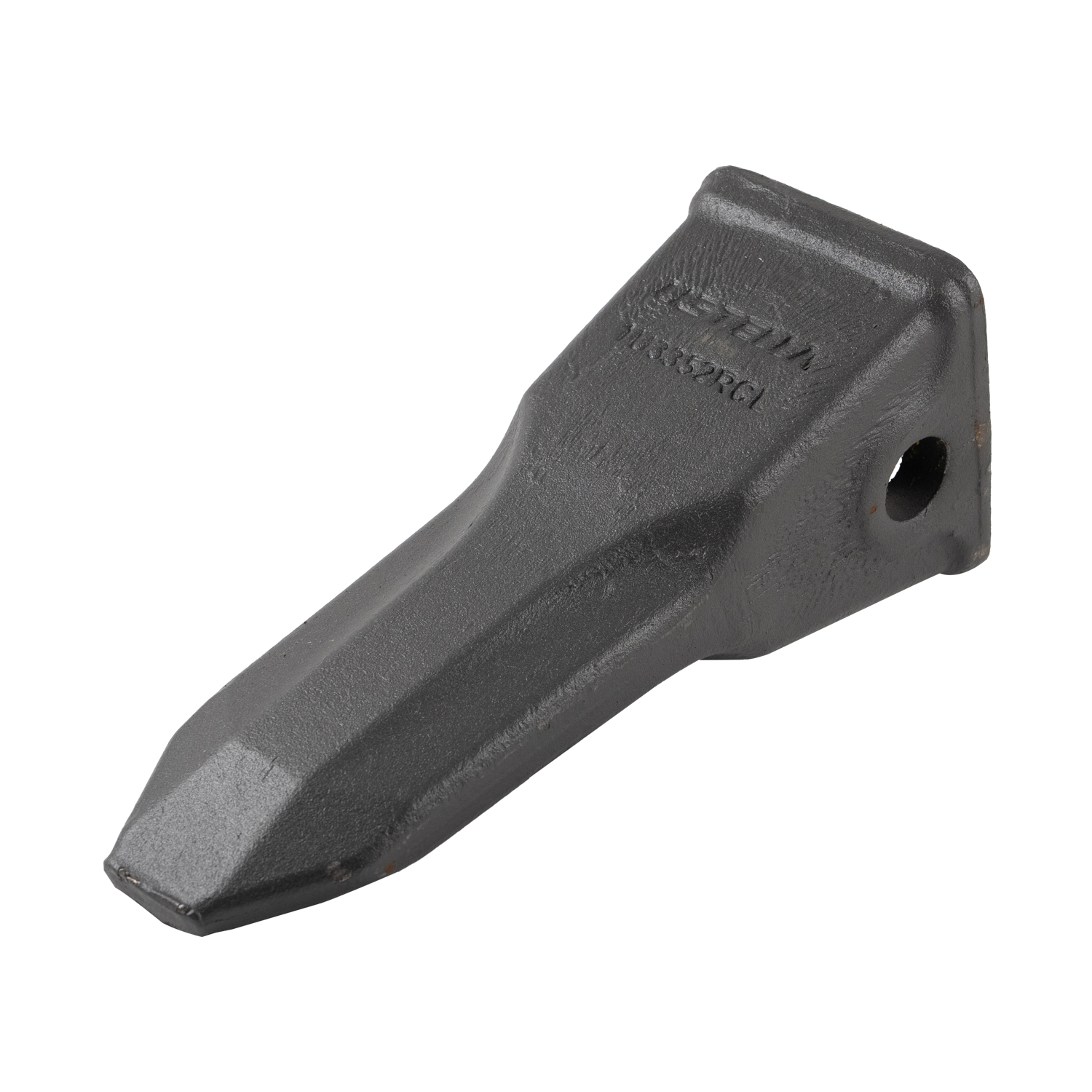

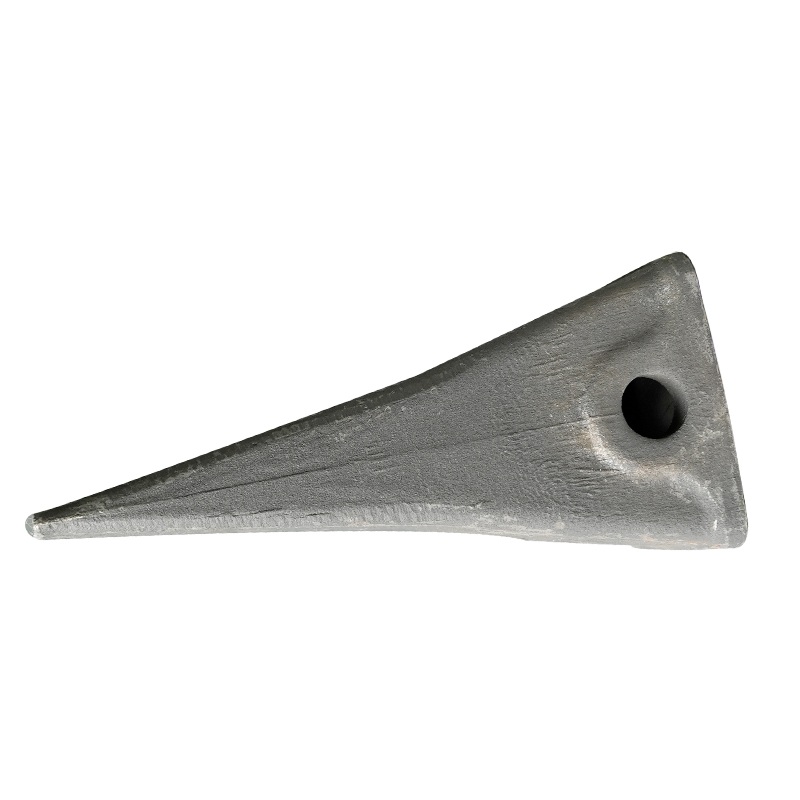

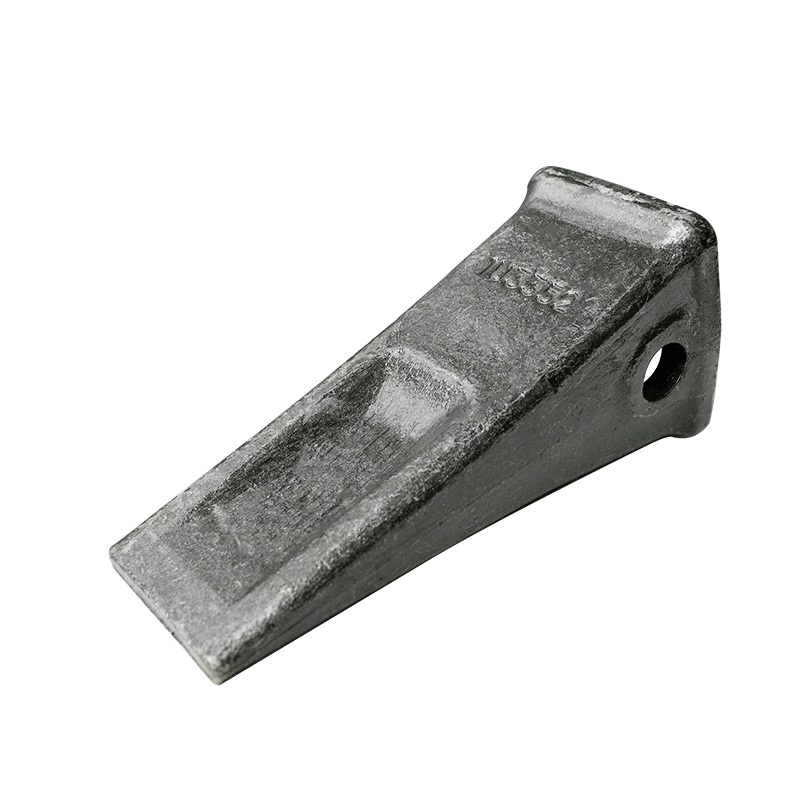

2. The Bucket Tip: This is the replaceable wear part that slips onto or locks into the adaptor. It is the part that engages the ground and wears out.
The design of the Bucket Tip is engineered for specific applications. Key variations include:
1.Profile/Shape:
From sharp, long rock points for penetrating fractured rock, to robust, blunt penetration teeth for hard ground, to wider twin-teeth or semi-blades for sandy or clayey materials where increased wear resistance and better filling are needed.
2.Metal Alloy and Hardness:
Teeth are made from high-strength, abrasion-resistant alloy steels. They are often heat-treated to achieve an optimal balance: a super-hard outer layer for wear resistance, backed by a tougher, more ductile inner core to absorb impact shocks without brittle fracture.
1.Standard Duty Teeth: For common digging in soil, clay, and loose materials.
2.Rock Teeth: Featuring reinforced bodies, thicker alloys, and sometimes tungsten carbide inserts for extreme abrasion in mining and quarrying.
3.Extreme Service/Tiger Teeth: With a more rounded profile for very high-impact conditions like underground mining or metal handling.
4.Specialty Teeth: Including ripper teeth for trenching, asphalt-cutting teeth, and teeth with built-in wear indicators.
1.Durability: The use of high-quality alloy steel ensures long wear life and better reliability.
2.Advanced Production Methods: The production process includes forging and casting to enhance strength and durability.
3.Stable Quality: Consistent quality control ensures each product meets high standards.
4.Versatility: Suitable for various heavy-duty applications, including breaking up hard soil and rock.
Excavator bucket teeth are a perfect example of engineering where small details create a massive impact. Far from being mere consumables, they are highly engineered, application-specific components that are fundamental to translating hydraulic power into productive work. Selecting and maintaining the right teeth is one of the most crucial decisions for ensuring an excavator operates at peak performance, proving that in the demanding world of earthmoving, the smallest parts often carry the greatest weight.
