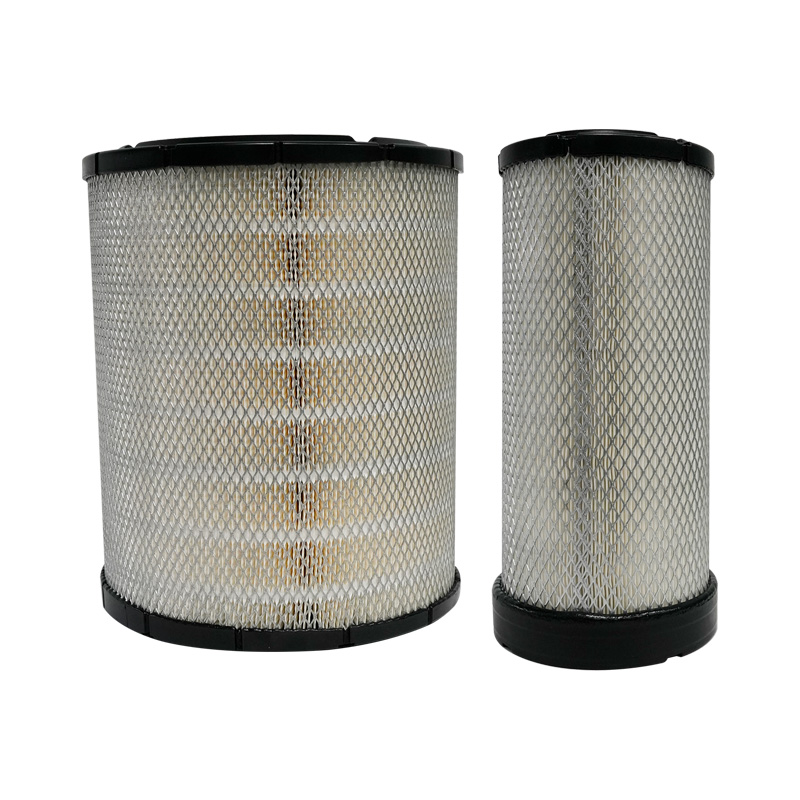

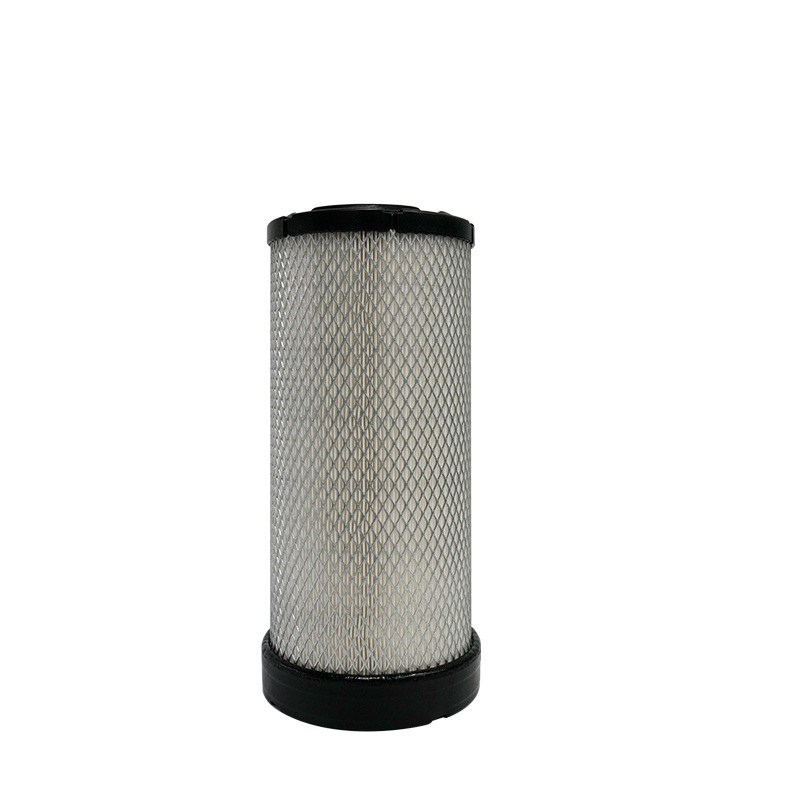

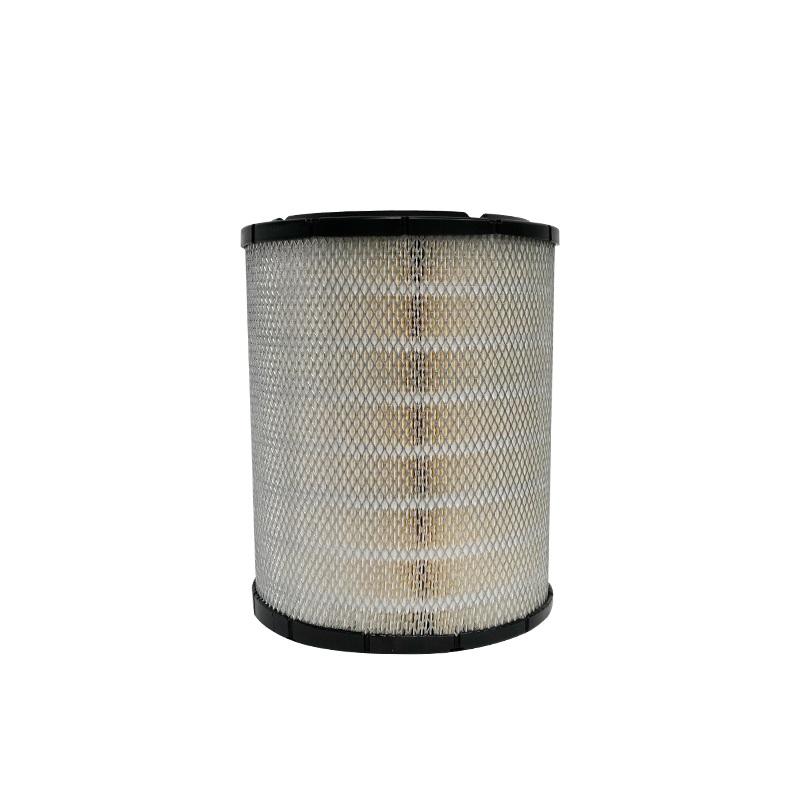

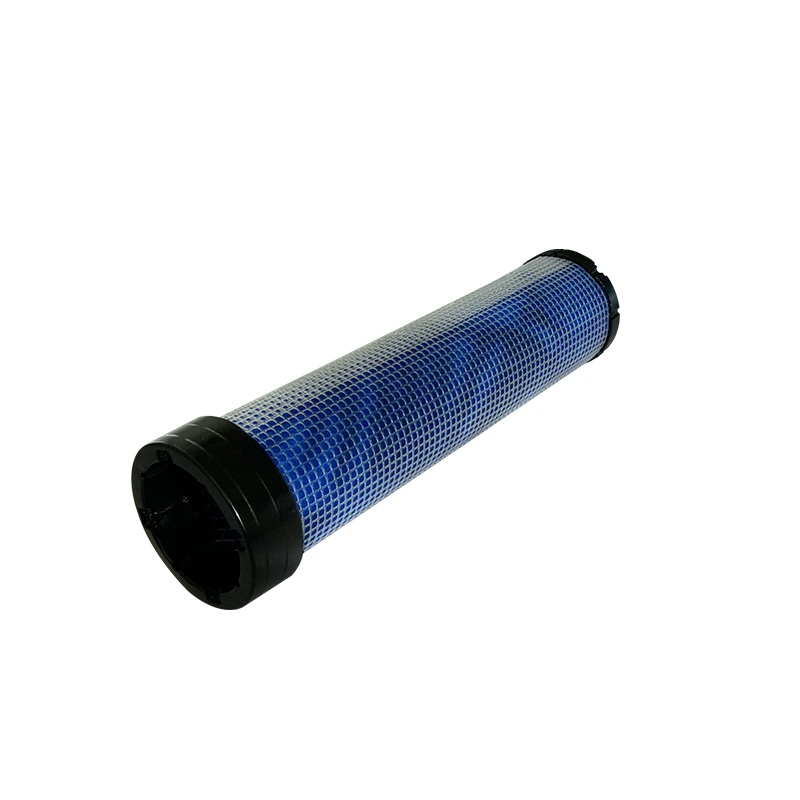

1. High-Efficiency Filtration Media:
Typically constructed from pleated, resin-impregnated paper or synthetic materials with precisely controlled pore sizes. This design maximizes surface area for dust capture while maintaining low airflow restriction.
2. Robust Construction:
Features durable end caps and a sealing gasket to ensure a perfect, leak-proof seal within the air filter housing.
3. Pleated Design:
The deep, uniform pleats provide a large filtering area in a compact space, enhancing dirt-holding capacity and service intervals.
1.Engine Protection:
Acts as the first and most vital line of defense for the engine, directly contributing to reduced operating costs by preventing major engine damage.
2.Performance Maintenance:
A clean filter ensures the correct air-to-fuel ratio, maintaining engine power, responsiveness, and fuel economy. A clogged filter restricts airflow, causing power loss, increased black smoke, and higher fuel consumption.
3.Cost-Effective Operation:
Regular use of quality filters is vastly more economical than repairing or replacing engines damaged by contaminated air.
4.Extended Service Life:
High-quality filters are designed for extended service intervals under normal conditions, reducing downtime and maintenance frequency.
5.Reliability:
Ensures reliable engine operation even in harsh, dust-laden environments typical of construction, mining, and quarrying sites.
1. Regular Inspection:
Visually check the air filter restriction indicator (if equipped) or inspect the filter itself at regular
intervals recommended by the OEM (Original Equipment Manufacturer), and more frequently in
extremely dusty environments.
2. Proper Cleaning (For Serviceable Filters):
Do NOT tap or bang the filter to clean it, as this can drive debris deeper into the media or
damage the pleats.
Use dry, low-pressure compressed air from the inside out, blowing perpendicular to the pleats. Hold the nozzle at least 2 inches away.
Never use water or solvents to clean a standard paper filter element.
3. Timely Replacement:
Replace the filter cartridge according to the service schedule or when inspection/restriction
indicators show it is necessary. Never exceed the recommended service life. Always replace a
damaged or heavily soiled filter.
4. Seal Integrity Check:
Before installing a new or cleaned filter, carefully inspect the sealing gasket for cracks or damage. Ensure the filter housing and intake ducts are clean and free of debris. Verify the filter seats
perfectly and the housing is sealed tightly to prevent unfiltered "bypass" air.
5. Use Genuine or High-Quality Replacements:
Always use filters that meet or exceed the OEM specifications to guarantee filtration efficiency and engine protection.
The excavator or other heavy equipment air filter cartridge is a small but indispensable investment in engine health. By understanding its purpose, selecting quality filters, and adhering to proper maintenance practices, you can ensure maximum engine protection, performance, and operational economy for your heavy equipment.
